RASNEL LASER

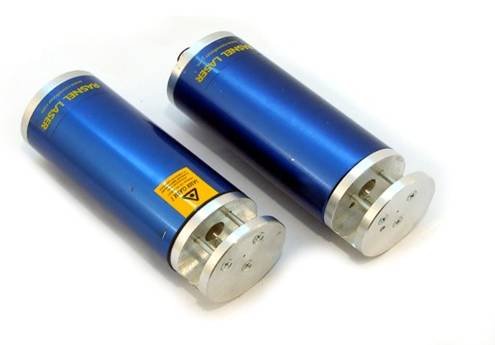

Fotoseller
Optoelectric photocell Tx-Rx
Code                     606044
Beam N.                1  - 1mW 660nm
Dimensions           45mm x 120mm
Voltage supply      24Vdc
Range                   30mt
Output                  relay
Answer time          8ms
Optoelectric photocell
Mod. REFLEX WITH VISIBLE
RED BEAM

Code                     606044
Beam N.                1  - 1mW 660nm
Dimensions            45mm x 120mm
Voltage supply       24Vdc
Range                    30mt
Output                   relay
Answer time           8ms
LD 40 & Analogic devicesModel          Measuring range          Accuracy        Dimensions
LD 40                                                  400mm  to 80000mm     1mm        212mmx96mmx50mm
Lm 50                                                    50mm+/- 10m          0,1mm          96mmx35mmx48mm
Lm 80                                                    80mm+/-20mm        0,1mm           96mmx35mmx48mm
Lm 150                                               130mm+/- 30mm        0,2mm           96mmx35mmx48mm
Laser Scanner Mod. ULISSE
FOR CNC MACHINERY

Model               Measuring range        Accuracy
Ulisse    80          80mm             0,5mm
Ulisse    100        100mm           1mm
Ulisse    150        150mm           1,5mm
Ulisse    200        200mm            2mm
       Additional Hard lock
                   Training
Single beam Laser Safety Barriers
WITH VISIBLE LASER LIGHT

Code                            B1
Number of beams        1
Dimensions mm            50 x 30 x 80
Range                         60m

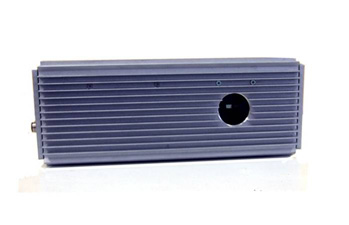

2D PROJECTOR

Model                              Description                                                     Accuracy        Dimensions
2D cad gen red             2D Red light projector - software- cables        1mm/3mt       280mmX110X110mm
2D cad gen  green        2D Red light projector- software- cables         1mm/3mt        280mmX110X110mm
Hard lok                        Additional software key
Hard lokx2                    Additional software key to work with 2 devices.
Electronic measuring meter MD 4000

Model                     Description                                          Features
MD 4000          For horizontal reading          Complete of 4m rack  mod 1 ,encoder 500 and control box
MV 1000          For vertical reading              Complete of 1m rack  mod 1 ,encoder 500 and control box

Code
M
ME
M2HL
M2XL
M2XT
M4HT
M4XT
M2HLR
M2XLR
M2XTR
M4HTR
M4XTR
Description
Automuting control integrated on the barrier
Automuting control not integrated
Automuting control 2 parallel  L beams
Automuting control 2 crossed L beams
Automuting control 2 crossed T beams
Automuting control 4 parallel T beams
Automuting control 4 crossed T beams
Automuting control 2 parallel L  beams Reflex
Automuting control 2 crossed L beams Reflex
Automuting control 2 crossed T beams Reflex
Automuting control 4 parallel T beams Reflex
Automuting control 4 crossed T beams Reflex
